Yes, you can die cast brass using high-pressure die casting, but this requires specialized technology. Brass alloys have a high melting point (over 900°C) and a rough surface, which can wear down standard molds. Global annual brass production reaches 75,000 tons, with Asia accounting for 30,000 tons. Understanding the die casting process is crucial for reducing production costs. Manufacturers like MORELUX offer precise solutions for high-volume production.
Key Takeaways
- Brass die casting requires extremely high temperatures and specialized molds. Choosing a silicon-containing alloy helps reduce wear.
- High pressure die casting reduces waste to just 3-8%. It works best for making many small parts quickly.
- For large parts or small-batch production, sand casting can be considered. Combining it with CNC machining can improve precision.
Feasibility of Die Cast Brass
Die-cast brass is well-suited for mass production of parts, but its use is far less frequent than that of zinc or aluminum alloys. The main reason is brass’s extremely high melting point. This high temperature significantly increases the difficulty of the high-pressure die-casting process. To mass-produce such parts, manufacturers require specialized tools and methods to cope with these demanding conditions.
Material Properties and Challenges

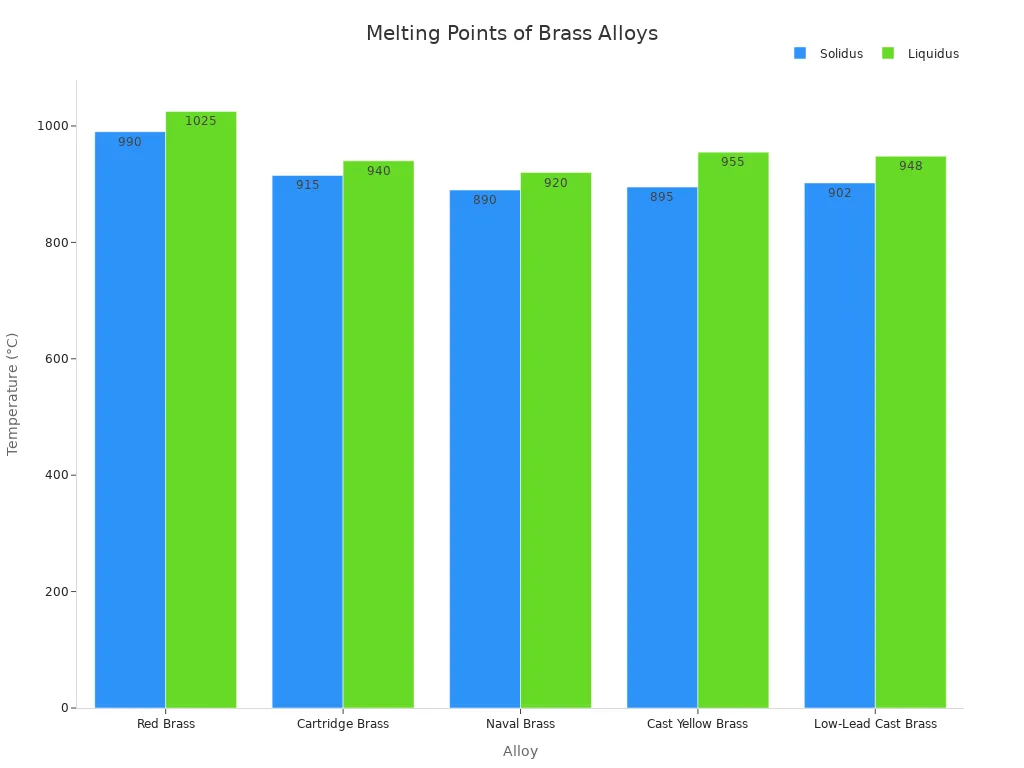

The alloys used in high-pressure die casting have very high melting points. The table below lists the melting point ranges of commonly used alloys in high-pressure die casting.
During high-pressure die casting, workers heat the alloy to 960–1000°C (1760–1832°F). This is 40–60°C above its liquidus temperature. The extra heat helps the metal flow better into the mold. The mold steel must be able to withstand the repeated high-temperature heating and cooling cycles during high-pressure die casting.
The alloy also expands when heated, which affects the dimensions of the parts. Its coefficient of linear expansion is 19 × 10⁻⁶/°C. Engineers must take this expansion into account when designing high-pressure die casting molds. Parts that fit tightly together during cooling will form suitable gaps after heating and expansion.
The thermal conductivity of different alloys used in high-pressure die casting varies considerably. Silicon red copper (C69400) has a thermal conductivity of 26 W/m·K, while low-silicon brass (C22000) has a thermal conductivity as high as 189 W/m·K. A balance between thermal conductivity and strength helps in selecting the appropriate alloy for high-pressure die casting.
High-pressure die castings exhibit very high tensile strength. Typical castings can reach tensile strengths of 338 to 469 MPa. The choice of alloy directly determines tensile strength and corrosion resistance. For example, the manganese in copper-zinc-manganese alloys (C99700, C99750) imparts additional toughness and tensile strength. These casting alloys are suitable for a wide variety of applications.
Die Wear and Alloy Selection
Die wear is a major problem in this process. The high melting point of alloys can rapidly damage standard die steel. The table below compares the die life of different materials.
| Material | Maximum Die Life (cycles) |
|---|---|
| Aluminum | 100,000 |
| Brass (leaded yellow) | 10,000 |
Aluminum molds have a lifespan approximately 10 times that of brass molds. Shorter mold life leads to increased unit prices for parts in mass production.
To reduce mold wear, manufacturers choose special alloys for high-pressure die casting. Silicon-containing alloys offer better fluidity and cause less damage to the mold. These alloys facilitate a smoother high-pressure die casting process. Hot-work steel grades such as H13 are commonly used materials for high-pressure die casting molds. Higher grades such as SKD61 and 8407 offer even longer lifespans.
The choice of alloy also affects how parts are manufactured. Lead-containing brass (C85200) is a common material for high-pressure die casting. It has good fluidity and is easy to machine. However, environmental regulations are prompting manufacturers to switch to lead-free alloys. These alloys have tensile strengths of 350-420 MPa and good corrosion resistance. Manufacturing these parts requires strict control of casting parameters. The casting process necessitates close monitoring of temperature and pressure.
For some applications, low-pressure die casting is also an option. Low-pressure die casting uses lower injection pressures, but still requires precise temperature control. Low-pressure die casting is suitable for parts with relatively simple shapes. However, each cycle of low-pressure die casting takes longer.
MORELUX is a leading precision die casting manufacturer located in Malaysia. They offer high-pressure die casting services for copper alloys, including brass. With their superb alloy manufacturing technology, they are able to produce high-quality parts for numerous sectors, including automotive.
Die casting brass parts requires careful design and production. Manufacturing such parts requires advanced high-pressure die casting technology.
The Die Casting Brass Process and Alternatives
Steps in the Die Casting Brass Process
Cold chamber die casting is the standard method for die casting these alloys. Manufacturers must control three temperature zones during the die casting process:
- Die temperature
- Casting chamber temperature
- Alloy temperature
Each area requires strict control to mitigate thermal stress and extend mold life. The high-pressure die casting process begins with mold preheating. The manufacturer heats the mold to a set temperature before the first cycle. This step prevents thermal shock when hot metal enters the mold. Good preheating reduces stress on the mold steel and helps maintain consistent part quality. Precise control of preheating is crucial for high-pressure die casting.
Next, lubricant is applied to the mold cavity. The lubricant serves two purposes: it helps the casting demold smoothly after hardening and it cools the mold surface between cycles. High-pressure die casting of these alloys requires special lubricants capable of withstanding higher temperatures.
Next comes the injection stage. The system injects a specific amount of molten metal into the cooling chamber. Then, a plunger pushes the metal into the mold cavity under high pressure. This pressure ensures that the metal fills every part of the cavity before it begins to harden. The pressure required for high-pressure die casting is significantly higher than that for aluminum or zinc. High-pressure die casting allows for rapid filling of the mold cavity.
The cooling process ends the entire cycle. The metal hardens rapidly within the mold. The die casting machine then opens the mold, and ejector pins push the finished part out. The high-pressure die-casting cycles for these alloys require careful inspection at each step. Temperature stability must be maintained during each high-pressure die-casting cycle. Die-cast brass parts require careful handling during the ejection stage.
When to Choose an Alternative Method
This method is suitable for manufacturing large quantities of parts with identical shapes. Other methods are suitable for specific part designs and mass production. Understanding when to use high-pressure die casting instead of other methods helps manufacturers make informed choices.
Sand casting is a better choice for certain shapes of parts. The table below compares the suitability of sand casting for different design features.
| Geometric Attribute | Sand Casting Suitability (vs Die Casting) |
|---|---|
| Part Size | Preferred for large parts |
| Shape | Preferred for irregularly shaped parts |
| Design Complexity | More suited for simpler designs |
| Component Scale | Better for larger components |
| Wall Thickness | Produces thicker wall sections for durability |
| Internal Features | Can accommodate complex internal geometries |
For large or irregularly shaped parts, sand casting offers greater design freedom. This process eliminates the need for expensive molds, resulting in lower costs for small-batch production. However, compared to high-pressure casting, sand casting produces a rougher surface finish and a looser fit. High-pressure casting, on the other hand, achieves a tighter fit.
CNC machining is another option for such parts. A comparison of material loss shows a significant difference.
Compared to machining, high-pressure die casting produces significantly less waste. The waste rate in high-pressure die casting is only 3% to 8%. Manufacturers can melt and reuse gate and runner materials. In contrast, CNC machining removes 50% to 80% of the material in the form of chips. High-pressure die casting greatly reduces material waste.
For manufacturers who need to use both processes simultaneously, one-stop service providers like MORELUX offer combined services. They combine high-pressure die casting with precision CNC machining and surface finishing. This allows customers to obtain castings close to the final shape first, and then precision machine key features to achieve a tight fit. This combined process reduces material waste while achieving a level of precision that high-pressure die casting alone cannot achieve. MORELUX’s high-pressure die casting technology has applications in a variety of fields.
Low-pressure die casting is another option suitable for certain applications. This method uses lower injection pressures than high-pressure die casting. Low-pressure die casting is suitable for parts with simpler shapes and thicker walls. This method has a longer production cycle but lower mold costs. For medium-volume production, low-pressure die casting strikes a balance between cost and quality. Manufacturers choose between high-pressure and low-pressure die casting based on part requirements.
The choice of method depends on the specific requirements of the part. High-pressure die casting is the better choice when manufacturing a large number of small parts with uniform wall thickness. Sand casting may be more suitable for large parts with smaller production volumes and irregular shapes. CNC machining may be necessary for parts requiring extremely high fitting precision or complex internal structures. The automotive industry uses all three methods depending on its specific needs. Customized high-pressure die casting solutions can meet specific requirements.
Die casting brass suits high volume production when manufacturers manage heat and die wear carefully. The die casting process demands specialized alloys and precise equipment. High pressure die casting delivers high quality castings for demanding applications. Consult an experienced manufacturer like MORELUX to evaluate part design, volume, and budget. Their casting expertise guides choices between die casting and alternatives. Partnering with skilled suppliers ensures successful manufacturing of brass components.
FAQ
What makes the brass die casting process challenging?
The high melting point of brass makes the die wear out faster during die casting. The casting process needs special alloys.
What industries use die cast brass components?
The automotive industry uses die cast brass parts for jobs that need high strength. The casting process fits many manufacturing needs.
How does high pressure die casting compare to other methods?
High pressure die casting creates less waste than CNC machining. The die casting process has only 3-8% scrap.
