High-pressure die casting is a method for manufacturing metal parts. It uses pressure to force molten metal into a steel mold, producing high-strength, high-precision parts. This method allows companies to quickly produce large quantities of metal parts with extremely high precision.
- The industry’s annual market value is projected to reach approximately $42.91 billion by 2025.
- The continued growth in market size demonstrates its importance in manufacturing.
Key Takeaways
- High-pressure die casting is a method for rapidly manufacturing high-strength metal parts. It uses molten metal and a steel mold.
- This process offers extremely high precision, enabling the production of parts with smooth surfaces and complex shapes, meaning fewer additional processing steps are required.
- Companies typically use aluminum die casting, zinc die casting, etc.These metals help create lightweight yet strong parts. These parts are widely used in automotive, electronics, and medical devices.
- This method can save costs. It allows companies to produce large quantities of parts at once, thus reducing the cost per part.
- New technologies, such as machines and sensors, are constantly improving the die casting process. It helps to accelerate production processes and improve product quality.
High Pressure Die Casting Overview
What Is High Pressure Die Casting
High pressure die casting is a method of shaping metal into strong and delicate parts. Machines use immense pressure to force molten metal into a steel mold. The metal cools rapidly and takes the shape of the mold. Companies use this method to quickly produce large quantities of parts.
High pressure die casting can use various metals. The table below lists some commonly used metals and their properties:
| Metal Type | Characteristics |
|---|---|
| Aluminum Alloys | Lightweight, high strength, corrosion resistant; ideal for automotive and aerospace applications. |
| Zinc Alloys | Excellent fluidity, high dimensional stability; used in electronics and consumer products. |
| Magnesium Alloys | High strength-to-weight ratio; used in aerospace and portable electronics. |
| Copper-Based Alloys | High strength, excellent thermal and electrical conductivity; used for specialized applications. |
This process differs from other casting methods. The table below compares high pressure die casting and conventional casting:
| Feature | High Pressure Die Casting | Traditional Casting |
|---|---|---|
| Material Specificity | Primarily uses aluminum and its alloys. Suitable for automotive, aircraft, and electronics. | Various materials can be used, such as steel and iron, but its suitability for aluminum is not as good as high-pressure die casting. |
| Casting Method | Molten aluminum is forced into a mold using pressure. This results in a smooth surface and good precision. | Using gravity and simple molds. More machining is usually required after casting. |
| Accuracy and Complexity | Can manufacture high-precision parts with thin walls and complex shapes. | Lower precision. Usually requires additional finishing. |
| Production Efficiency | Faster and lower cost for mass production. | Slower speed, requires more machining, especially in mold making. |
| Surface Finish and Strength | Smooth surface. Usually requires no additional machining. | Rougher surface, usually requires more machining. |
Key Principles
High-pressure die casting is effective based on several key scientific principles. These principles help produce precise and robust parts.
| Principle | Explanation |
|---|---|
| High Pressure Injection | Molten metal is injected into a mold under extremely high pressure, filling every corner of the mold. |
| Rapid Cooling | Rapid cooling enhances the strength and lifespan of the metal. |
| Variable Control | Maintaining precise control of pressure, temperature, and speed is crucial for achieving good results. |
| Injection Speed | The injection speed must be just right. Too fast or too slow can cause problems. |
| Final Pressure Compaction | Applying pressure to the metal in the final stage helps prevent shrinkage and maintains the part’s dimensions as required. |
- High-pressure die casting uses pressures ranging from 40 to 120 MPa. This is significantly higher than gravity die casting or low-pressure die casting.
- The metal can move at speeds of 30-80 mm/s or even faster.
- The mold is typically filled in less than one second. This makes the entire process extremely fast.
Note: High-pressure die casting technology enables companies to manufacture thin-walled, smooth-surfaced, and complex-shaped parts. This method is widely used in the automotive, electronics, and aircraft manufacturing industries due to its time and cost savings and ability to produce high-quality parts.
High Pressure Die Casting Process Steps
High Pressure Die Casting Mold Preparation
Mold preparation is the first thing workers do. They clean the mold and apply lubricant. This helps the metal flow and prevents sticking. Workers also heat the mold before starting casting. Heating the mold helps the metal flow better and prevents cracks caused by sudden temperature changes. Lubricant keeps the mold at the appropriate temperature and helps remove the finished part.
Choosing the right mold material is crucial. The table below lists some materials and their uses:
| Material Type | Key Properties | Common Applications |
|---|---|---|
| Aluminum Alloys | Lightweight, corrosion-resistant, good stability | Automotive, electronics |
| Zinc Alloys | High strength, suitable for small parts, low melting point | Automotive parts, trim |
| Magnesium Alloys | Very lightweight, easy to machine | Aerospace, electronics |
| Copper Alloys | Heat and electrical resistant, corrosion resistant | Electronic components, heat sinks |
Mold temperature affects the forming effect of the part. If the mold temperature is too low, the part surface will be rough; if the temperature is too high, spots may appear. Maintaining a suitable mold temperature is essential for producing parts with high strength and precision.
High Pressure Die Casting Metal Injection
The machine rapidly injects molten metal into the mold under high pressure. The table below lists commonly used pressures and speeds:
| Pressure Type | Pressure Range |
|---|---|
| Injection Pressure | 1,500 to 25,400 psi (10–175 MPa) |
| Intensification Pressure | 10 to 100 MPa |
| Injection Speed | 10–30 m/s |
Mold filling time is less than a second. Injection speed is crucial. Too slow a speed can result in marks or weak points on the part. Too fast a speed can cause air trapping, creating voids. At MORELUX, employees use a special control system to maintain the stability of the injection process. This helps them produce qualified parts every time.

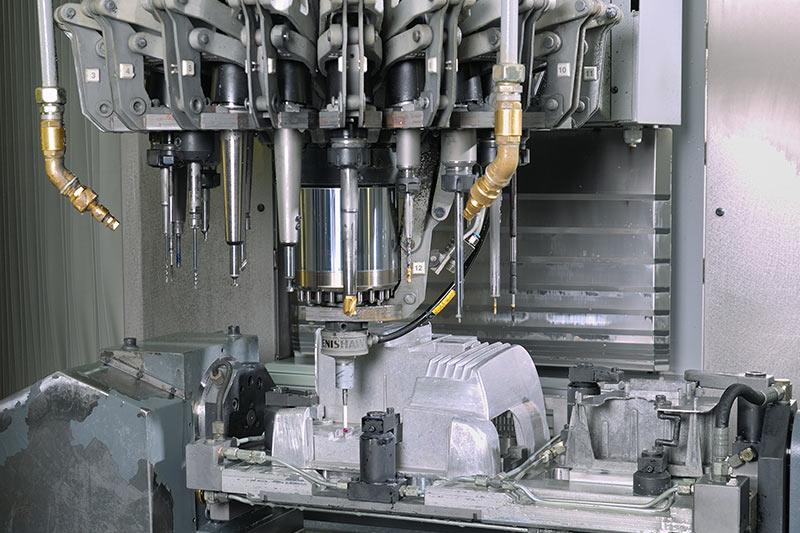

High Pressure Die Casting Part Removal & Trimming
After the metal cools, pins push the part out of the mold. Workers then trim excess parts, such as gates and sprues. They use trimming molds, saws, or grinding tools to do this. Sometimes, robots assist in the quick and safe removal and trimming of parts.
MORELUX’s modern die-casting production lines use sensors and monitors. These devices continuously monitor pressure, speed, and temperature. This helps correct errors before they occur. Automation and robotics make part removal and trimming faster and more precise. This technology helps ensure that every part is qualified and ready for use.
High Pressure Die Casting Advantages
Speed & Efficiency
High-pressure die casting is extremely fast. Companies can produce thousands of parts quickly. The process utilizes high pressure to rapidly fill the mold. This means that each part can be produced in just a few seconds to a minute. This production method saves costs when mass-producing parts. MORELUX uses intelligent machines and robots to ensure the efficient operation of the production process.
- Mass production of parts means faster production cycles.
- Mass production of parts results in lower costs per part.
- Traditional casting methods are slower, especially for parts with complex shapes.
- Each production cycle can take only a few seconds to a minute.
- Rapid metal filling and cooling improve production efficiency.
- Wall thickness and cooling method affect production cycle time.
Precision & Quality
Parts produced by high-pressure die casting have a very tight fit and a smooth surface. MORELUX inspects each part to ensure its quality. This process is very precise, so there are fewer instances of parts needing repair later. The table below shows the dimensional accuracy:
| Size Range (mm) | Tolerance (mm) |
|---|---|
| Up to 25 | ±0.10 |
| 25–50 | ±0.15 |
| 50–100 | ±0.20 |
| 100–300 | ±0.30–0.50 |
| Process | Typical Linear Tolerance |
|---|---|
| High Pressure Die Casting | ±0.038–0.10 mm |
| Investment Casting | ±0.13 mm |
| Sand Casting | ±0.25 mm or greater |
Surface finish is also important. The table below compares the surface finish of parts:
| Manufacturing Method | Surface Finish Quality |
|---|---|
| High Pressure Die Casting | Excellent |
| Gravity Die Casting | Moderate |
| Low Pressure Die Casting | Good |
Design Flexibility
High pressure die casting enables companies to manufacture parts with complex shapes. This process can produce thin walls and fine details. MORELUX uses specialized molds to manufacture parts with holes, undercuts, and intricate patterns. Metal fills every part of the mold, making even complex designs easy to achieve. This helps businesses meet stringent requirements for appearance and dimensions.
| Design Feature | Description |
|---|---|
| Complex Shapes | Manufacturing intricate designs that are difficult to achieve using other methods. |
| Thin Walls | Manufacturing parts with extremely thin walls. |
| High Precision | Achieving tight fits and smooth surfaces, typically without additional fasteners. |
- Moving parts within the mold create holes and undercuts.
- Rapid metal injection molding creates robust parts.
- Mold design focuses on lines that define the rigid inner shape.
- MORELUX uses premium materials, innovative concepts, and intelligent technology to produce robust and reliable die-cast parts for numerous industries.
High Pressure Die Casting Applications
Automotive Components
Automakers use high-pressure die casting technology to create robust yet lightweight components. MORELUX specializes in automotive-specific parts, using alloys of aluminum, zinc, and magnesium. These metals help extend the lifespan of components and reduce weight, thus improving vehicle performance. Some common automotive parts are manufactured using this process, including:
- Engine components, such as cylinder heads and gasoline engine components
- Motor and stepper motor brackets
- Transmission and motor housings
- Protective covers for in-vehicle information systems and electronic devices
- Sensor and airbag housings
- Fuel intake components
- Air conditioning system components
- Seatbelt retractor reels
- Complexly shaped lock cylinders
- Transmission and chassis components
- Connectors for autonomous vehicles
- Sensor and LiDAR housings
- Power steering and braking system components
MORELUX uses intelligent machines to ensure the safety and strength of every component.
Electronics & Telecom
High-pressure die casting technology is crucial for the electronics and communications industries. MORELUX manufactures housings, covers, and radiators with extremely high precision. Aluminum alloys, such as ADC12, help create lightweight components with excellent heat dissipation. These metals also effectively prevent rust and control temperature, ensuring proper device operation. This process can manufacture small, precision components such as connectors and shielding covers, which help ensure the proper functioning of mobile phones and computers.
Tip: Aluminum die casting has excellent heat dissipation properties, effectively blocks electromagnetic interference/radio frequency interference, and is strong and lightweight, making it ideal for electronic and telecommunications components.
Medical Equipment
Medical companies utilize high-pressure die casting technology to manufacture complex and safe components. MORELUX uses aluminum, zinc, and magnesium alloys to produce components for a variety of medical devices. These metals are rust-resistant and safe for human use. Some medical devices manufactured using this process include:
- Ventilators
- Bed components
- Storage cabinets
- Induction brackets
- Medical monitors
- Chair lifts
- Infusion pumps and oxygen pumps
- Ultrasound and X-ray machines
- Diagnostic and imaging systems
- Surgical instruments
- Patient care and mobile devices
- Dental equipment
MORELUX inspects each component to ensure its precision. This helps avoid errors in the medical device manufacturing process. This process enables manufacturers to create thin and complex-shaped components for novel medical devices.
High-pressure die casting companies can quickly produce robust and precise parts. Many companies choose this method because it is fast, cost-effective, and can produce parts with complex shapes. The table below explains why companies choose this process:
| Advantage | Description |
|---|---|
| High Precision | Parts fit well and have smooth surfaces. |
| Cost-Effectiveness | Batch production reduces the cost per part. |
| Fast Production | Companies can produce thousands of parts per day. |
| Complex Shapes | Even complex shapes can be easily manufactured. |
MORELUX uses intelligent equipment and rigorous inspection processes to ensure its die-cast parts consistently meet the needs of various applications.
FAQ
What metals can be used in high-pressure die casting?
Aluminum alloys, zinc alloys, and magnesium alloys are the most commonly used metals. These metals can be used to create high-strength, lightweight parts, and parts with intricate details. MORELUX uses these alloys in a wide variety of projects.
How does high-pressure die casting improve part quality?
High pressure allows the mold to fill quickly, resulting in a smooth surface and a tight fit. MORELUX inspects each part to ensure high quality.
Why do companies choose high-pressure die casting?
- It makes parts quickly.
- It costs less when making many parts.
- It can make parts with hard shapes.
These things help companies save time and money.
What industries use high pressure die casting?
| Industry | Common Parts |
|---|---|
| Automotive | Engine covers, brackets |
| Electronics | Cases, heat sinks |
| Medical | Device housings, tools |
MORELUX helps all these industries with their parts.
