Hot chamber die casting and cold chamber die casting are two distinct die casting methods, differing primarily in how the molten metal is handled. Hot chamber die casting utilizes a built-in molten pool, making it ideal for metals like zinc. In contrast, cold chamber die casting melts the metal outside the machine and is typically used for metals like aluminum. Choosing the right die casting method is crucial for ensuring high quality and performance. MORELUX offers reliable die casting solutions, providing professional service whether you require hot chamber or cold chamber die casting.
Key Takeaways
- Hot chamber die casting melts the metal inside the machine. It’s fast and suitable for metals with low melting points, such as zinc.
- Cold chamber die casting melts the metal outside the machine. It’s suitable for metals with higher melting points, such as aluminum and copper.
- Choosing the appropriate die casting method depends on the type of metal, part size, and required production speed.
- Hot chamber die casting is best suited for rapid, high-volume production of small parts. Cold chamber die casting is better suited for producing larger, stronger parts.
- MORELUX provides professional die casting services. They ensure high-quality parts for numerous industries and conduct rigorous quality testing.
Hot Chamber Die Casting Overview
How Hot-Chamber Die Casting Works
Hot chamber die casting uses a machine containing molten metal that is heated to a temperature suitable for zinc or magnesium. When the metal reaches a sufficiently high temperature, a piston rapidly pushes it into a mold. The mold presses the metal into the desired part shape, which then cools inside the mold. The machine is then opened and the finished product is removed. This allows for the rapid and convenient production of large quantities of parts. The table below lists the main steps and details of hot chamber die casting:
| Step | Parameter | Zinc Alloy | Magnesium Alloy | Lead Alloy |
|---|---|---|---|---|
| Prepare the mold | Mold Material | High strength, high temperature resistance | High strength, high temperature resistance | High strength, high temperature resistance |
| Die Geometry & Shape | Meet the design requirements | Meet the design requirements | Meet the design requirements | |
| Die surface finish and lubricity | High finish, good lubrication | High finish, good lubrication | High finish, good lubrication | |
| Heating Metal | Heating Temperature | 380-420°C | 610-650°C | 310-327°C |
| Heating rate | Fast | Fast | Fast | |
| Injection Mold | Injection Speed/Pressure/Time | Medium | Medium | Medium |
| Cooling Parts | Cooling Time | Medium | Medium | Medium |
| Cooling Method & Medium | Uniform, Water | Uniform, Water | Uniform, Water | |
| Take Out Parts | Size and Shape | Meet the Requirements | Meet the Requirements | Meet the Requirements |
| Lubricating Properties | Good | Good | Good |
Suitable Alloys for Hot Chamber
Hot chamber die casting is best suited for metals with low melting points. Examples include zinc alloys such as Zamak 3 and Zamak 5. Magnesium alloy AZ91D is also suitable for this process. These metals melt quickly and will not damage the machine.
Metals with high melting points, such as aluminum or copper, are not suitable for hot chamber die casting. The machines cannot withstand their high temperatures.
Advantages and Disadvantages of Hot Chamber Die Casting
Hot chamber die casting has many advantages. It allows for rapid part production with minimal material waste. The process is not only environmentally friendly but also allows for the creation of fine shapes. However, it is not suitable for all metals and has limitations on mold size.
Common Applications of Hot Chamber Die Casting
Many industries use hot chamber die casting technology to manufacture small, precision parts. Automotive companies use it to manufacture engine and transmission parts. Electronics manufacturers use it to manufacture housings and connectors. Machinery manufacturers use it to manufacture robust, small parts. Examples of common products include engine blocks, transmission housings, door handles, and trim pieces.
Cold Chamber Die Casting Technology Explained
Working Principle of Cold Chamber Die Casting

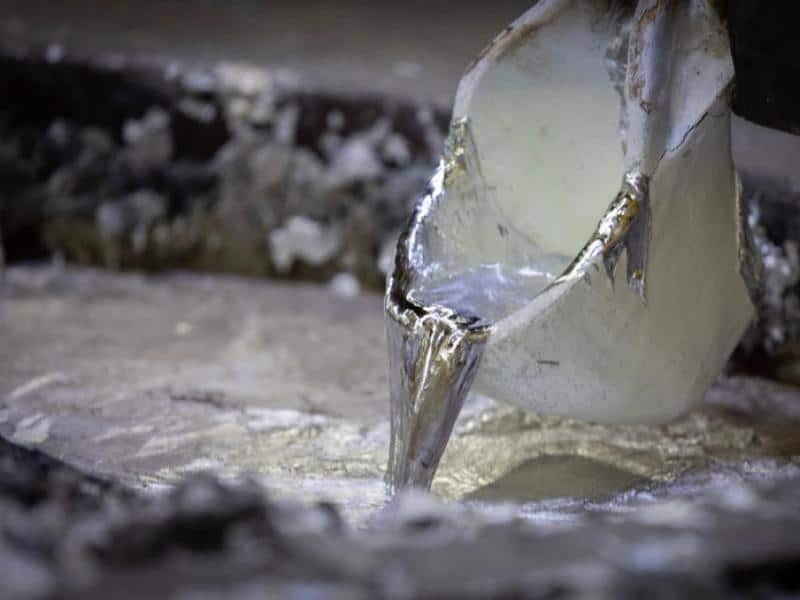

Cold chamber die casting differs from hot chamber die casting. In cold chamber die casting, workers melt metal in a furnace separate from the machine. They scoop the molten metal into a cold chamber, then pour it into the mold, where a powerful piston rapidly pushes the metal into shape. After the metal cools, the machine is opened, and the finished part is removed. This method can use metals with high melting points.
Common Alloys in Cold Chamber Die Casting
Cold chamber die casting is suitable for metals with high melting points. Aluminum is the most commonly used metal in this process. Brass and copper are also used in cold chamber die casting. These metals cannot be used in hot chamber die casting machines, as this will damage the equipment. The table below lists some commonly used alloys and their melting points:
| Alloy Type | Alloy Name | Melting Point (°C) |
|---|---|---|
| Aluminum Alloy | A380 | 555 |
| Copper Alloy | C110 | 1,085 |
| Brass Alloy | C360 | 930 |
Pros and Cons of Cold Chamber
Cold chamber die casting has many advantages. It can be used to manufacture large parts from high-strength metals. Not only does it produce aesthetically pleasing parts, but it also boasts extremely high strength. However, cold chamber die casting is more time-consuming than hot chamber die casting. Workers must pour each batch of metal manually or using robots. This step slows down the entire process. However, it allows you to manufacture parts of various shapes and sizes.
Note: Cold chamber die casting is best suited for parts requiring high strength, light weight, and resistance to rust.
Examples of Cold Chamber Die Casting Applications
Many companies use cold chamber die casting to manufacture critical parts. Automakers use it to manufacture engine blocks, housings, and wheels. Electronics companies use it to manufacture radiators and housings. Medical and telecommunications companies also choose cold chamber die casting for its precision and strength. MORELUX uses cold chamber die casting to manufacture high-strength parts for automobiles, electronics, and equipment.
Hot Chamber vs Cold Chamber Die Casting
Process Differences
Hot chamber die casting and cold chamber die casting use different methods to form metal parts. The following table lists the main differences between these two die casting methods:
| Feature | Hot Chamber Die Casting | Cold Chamber Die Casting |
|---|---|---|
| Method of Injection | Built-in pool of molten metal | Pouring molten metal into a separate chamber |
| Suitable Metals | Low melting temperature alloys | High melting temperature alloys |
| Risk of Damage | Not for high-melting alloys | Handles more types of alloys |
Material Compatibility
The type of metal is also crucial in determining whether hot chamber die casting or cold chamber die casting is used. Hot chamber die casting is best suited for metals with lower melting points, such as zinc, tin, and lead-based alloys. These metals will not damage the machine. Cold chamber die casting can use metals with higher melting points, such as aluminum, copper, and magnesium alloys. This makes cold chamber die casting suitable for a wide range of project types.
The following table lists the alloys suitable for each process:
| Die Casting Type | Suitable Alloys | Melting Point Limitation |
|---|---|---|
| Hot Chamber | Zinc, Tin, Lead-based alloys | Low melting points |
| Cold Chamber | Aluminum, Copper, Magnesium | High melting points |
Speed and Efficiency
Speed and efficiency are critical in product manufacturing. Hot chamber die casting is faster, which helps in the rapid production of large quantities of small or medium-sized parts. Cold chamber die casting, on the other hand, is more time-consuming.
The table below compares the speed and efficiency of the two methods:
| Method | Production Speed | Efficiency Description |
|---|---|---|
| Hot Chamber | Faster | No ladling step, quick cycles, good for high-volume production |
| Cold Chamber | Slower | Extra transfer step, better for special alloys and larger parts |
Cost and Durability
Hot chamber die casting and cold chamber die casting differ in cost and advantages. Hot chamber die casting machines typically have lower purchase costs and are suitable for mass production of small parts. Cold chamber die casting machines are more expensive but produce parts with fewer internal pores and higher strength. This is crucial for parts that require long-term use, such as automotive engine blocks.
The following table lists the key points:
| Feature | Hot Chamber Die Casting | Cold Chamber Die Casting |
|---|---|---|
| Suitable Metals | Zinc, Lead, Tin | Aluminum, Magnesium, Copper |
| Melting Process | Integrated Furnace | External Furnace |
| Injection Pressure | Lower | High (10,000+ psi) |
| Cycle Time | Faster | Slightly Longer |
| Durability | Moderate Strength, More Porosity | Higher Strength, Less Porosity |
Tip: Cold chamber die casting is more suitable for parts requiring high strength and low porosity.
Applications of Hot Chamber and Cold Chamber Die Casting
The choice between hot chamber and cold chamber die casting depends on your specific needs. Hot chamber die casting is suitable for small to medium-sized parts made of low-melting-point metals, especially for products requiring good surface finish and rapid prototyping. Cold chamber die casting is more suitable for larger or more complex parts, can use high-melting-point metals, and achieves excellent surface finish.
The following table summarizes the main factors:
| Factor | Hot Chamber Die Casting | Cold Chamber Die Casting |
|---|---|---|
| Material Compatibility | Low-melting alloys | High-melting alloys |
| Production Efficiency | Faster cycle times | Slower cycle times |
| Part Size and Complexity | Small to medium parts | Larger, complex parts |
| Surface Finish Requirements | Good | Excellent |
| Equipment Costs | Lower | Higher |
| Maintenance Needs | Less frequent | More frequent |
Manufacturers and engineers should consider the melting point of the metal, part production speed, part size and shape, surface finish, and equipment cost. These factors help them choose the appropriate casting process.
Note: Understanding the differences between hot chamber die casting and cold chamber die casting helps companies choose the best product manufacturing method.
Choosing the Right Die Casting Method
Key Considerations
Choosing the best casting method depends on many factors. Manufacturers first consider the type of metal used. They also consider the size and complexity of the part’s shape. Some parts must be very strong and durable. Many companies prefer casting processes because they can produce high-strength parts. Parts requiring tight fits need strict tolerances. Companies also consider the required number of parts and delivery speed. Delivery cycles and schedule changes will affect their choices. Cost is also crucial. Companies strive for value for money. They want high-quality products and good after-sales support. Quality control is essential. Certifications such as ISO 9001 indicate that the company produces parts of superior quality.
| Factor | Description |
|---|---|
| Production Volume | Casting is best for making many parts. |
| Part Complexity | This method works well for detailed shapes. |
| Cost Trade-offs | Companies must balance cost and long-term value. |
Industry Application Cases
Casting processes are widely used across numerous industries. Automakers use casting to manufacture gearbox housings and brackets. Electronics companies use casting to manufacture housings and other products. Medical device manufacturers use casting to manufacture ventilator frames, handles, and housings. Telecommunications companies use casting to manufacture outdoor housings, radiators, and antenna components.
Tip: Casting processes are ideal for manufacturing large quantities of small to medium-sized parts with smooth surfaces.
MORELUX Precision Die Casting Solutions
MORELUX is a trusted custom casting company. Their team utilizes new technologies to process a wide variety of metals and parts of various sizes. They serve automotive, electronics, medical, and telecommunications companies. MORELUX has rigorous quality control and numerous important certifications. Their processes employ high-pressure manufacturing, producing robust, precision parts. They also offer finishing and assembly services. This one-stop service helps customers achieve optimal results.
Hot chamber die casting and cold chamber die casting are suitable for different metals and products. Choosing the right process helps businesses save costs and achieve better surface finishes.
Quality inspection ensures good part performance and a longer lifespan.
FAQ
What are the main differences between hot chamber die casting and cold chamber die casting?
Hot chamber die casting melts the metal inside the machine. Cold chamber die casting melts the metal outside the machine. This determines the types of metals that can be used in each process.
Which metals are best suited for hot chamber die casting?
Zinc, magnesium, and lead alloys are best suited for hot chamber die casting. These metals have lower melting points and will not damage the machine.
Why do manufacturers choose cold chamber die casting?
Manufacturers choose the cold chamber die casting process to manufacture aluminum, copper, and brass parts. These metals require higher melting points to melt. Cold chamber die casting machines can safely handle these metals.
How does MORELUX ensure quality in die casting?
MORELUX employs new technologies and rigorous quality control measures. Their team conducts strength and precision tests on every part.
