The main difference between cold forging and die casting lies in how the metal is formed. Cold forging uses solid metal and applies high pressure, while die casting involves injecting molten metal into a mold. Both methods can produce robust and precision automotive and electronic components. Recent data shows that closed-die forging is best suited for manufacturing hard and complex parts.
Key Takeaways
- Cold forging uses solid metal and applies high pressure to create high-strength parts, making it particularly suitable for manufacturing robust and durable components.
- Die casting pours molten metal into a mold, producing parts with complex shapes and smooth surfaces, ideal for rapid mass production.
- Cold-forged parts are approximately 26% stronger than die-cast parts, making them more suitable for applications requiring high strength.
- The choice between cold forging and die casting depends on the shape of the parts, strength requirements, and quantity.
- Both methods have their advantages. Cold forging excels in strength, while die casting excels in detail work and speed.
Difference Between Cold Forging and Die Casting
To understand the differences between cold forging and die casting, it’s necessary to understand how they each shape the metal. Both methods can produce high-strength parts, but they use different metal forms and operate on different principles. The table below lists the differences between the two processes:
| Process | Material State | Mechanics |
|---|---|---|
| Die Casting | Molten Metal | Uses high pressure to fill a mold |
| Forging | Solid Metal | Applies compressive force to reshape |
Cold Forging Process
Cold forging typically uses solid metal to manufacture parts at room temperature. First, engineers select and prepare the metal material. The metals they choose include copper, aluminum, carbon steel, or stainless steel. These metals are strong and can be bent without breaking. Copper has good bending properties, while stainless steel does not rust and has high strength.
| Metal Type | Mechanical Properties |
|---|---|
| Copper | Excellent ductility and malleability; corrosion resistant |
| Aluminum | Lightweight; malleable; rust and corrosion resistant |
| Carbon Steel | Outstanding strength and ductility |
| Stainless Steel | Corrosion resistant; strong; aesthetic appeal |
| Low Carbon Steel | Improved strain hardening; carbon content of 0.1% to 0.25% |
After selecting the metal, engineers design the molds and tools. They use specialized tools to ensure the parts are shaped correctly and the metal deforms as intended. During cold forging, the machine applies significant pressure to the metal within the mold. This force changes the shape of the metal without melting it. The machine controls the intensity and speed of the applied pressure to achieve the desired shape.
Quality inspection is crucial in cold forging. Workers frequently inspect tools and parts to ensure they are in good condition. Cold-forged parts are strong and have a long service life. Tests show that forged parts are approximately 26% stronger than cast parts. Forged parts also have a higher yield strength, reaching up to 400 MPa, compared to only 300 MPa for cast parts. Forged parts can withstand greater stress and have a service life that can be extended by 50%.

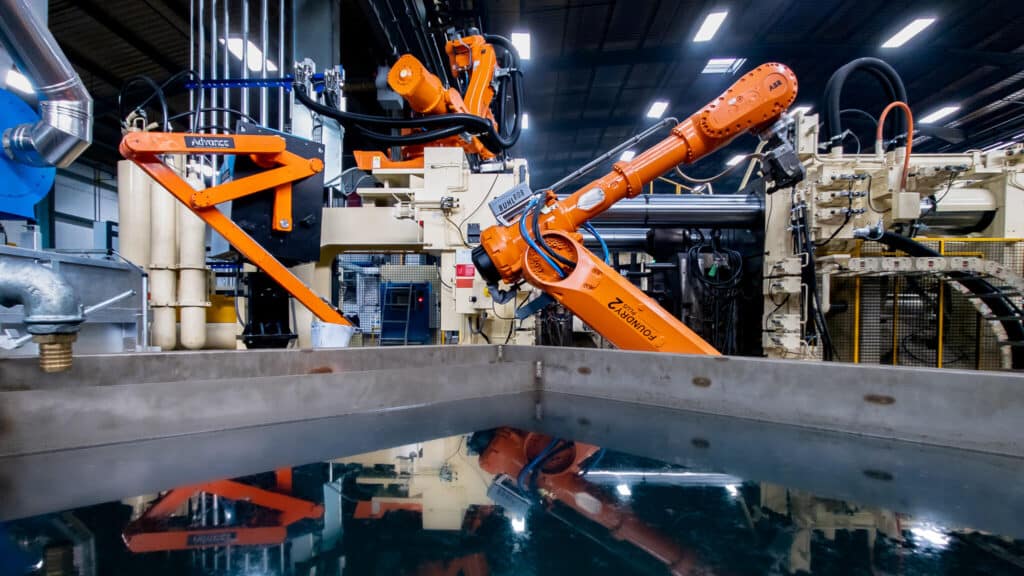

Die Casting Process
Die casting uses molten metal to manufacture parts. The first step is mold preparation. Workers spray a special liquid into the mold to keep it cool and aid in demolding. Then, they use high pressure to inject molten metal into the closed mold, ensuring that the metal fills every space within the mold.
Once the metal has cooled and hardened, the mold opens. Ejector pins push the part out of the mold. Afterward, workers remove excess metal from the finished part. The table below lists the main steps of die casting:
| Step | Description |
|---|---|
| Mold Preparation | The mold cavity is sprayed with lubricant to control temperature and assist in casting removal. |
| Filling | Molten metal is injected into the closed dies under high pressure, ensuring the cavity fills completely. |
| Ejection | Once solidified, the dies are opened, and the casting is ejected using ejector pins. |
| Shakeout | Scrap material is separated from the casting, often using a trim die or other methods. |
The quality of die-cast parts depends on the speed and temperature at which metal is injected into the mold. Improper process operation can result in the metal failing to completely fill the mold, causing the part to malfunction.
Die casting is well-suited for manufacturing complex shapes and smooth surfaces, and it is also more cost-effective for mass production. Aluminum alloys such as 380, 383, 413, A360, 6061, and B390 are commonly used in die casting. These metals are widely used in engine blocks, automotive parts, electronic products, and furniture frames.
Comparison of Forging and Casting
The process characteristics of cold forging and die casting determine the strength, shape, and application of parts. Forging can produce parts with higher strength and longer service life. Casting is better suited for manufacturing complex shapes and rapid mass production. Engineers consider the intended use, strength requirements, and production volume when choosing between casting and forging.
Tip: If you know how cold forging and die casting are different, you can choose the best way to make a part.
Forged vs Cast: Key Comparisons
Material Properties and Strength
Parts manufactured by forging and casting differ in strength. Forging uses solid metal and applies immense pressure, making the metal very strong and resistant to breakage. Casting, on the other hand, involves pouring molten metal into a mold. Castings may contain tiny pores called porosity, which reduce the strength of the casting. The table below lists the differences in strength and reliability between forging and casting:
| Process Type | Strength and Integrity | Porosity and Breakage Susceptibility |
|---|---|---|
| Forging | Much stronger than casting. The metal is more predictable | Not likely to break like cast metal |
| Casting | Parts have more holes and break easier than forgings | More likely to have holes and be weak |
Precision and Surface Finish
Precision is crucial for many jobs. Forging produces a smoother surface than casting. Cold forging can achieve surface smoothness of 6.3 to 12.5 micrometers. Die-cast surfaces are typically rougher, with roughness between 12.5 and 25 micrometers. Forged parts also fit better on machine tools due to their smaller tolerances. The table below compares the two processes:
| Process | Typical Tolerance | Surface Finish (Ra) | Mechanical Properties | Cost Structure | Typical Use Case |
|---|---|---|---|---|---|
| Casting | IT14–IT18 | 12.5–25 μm | Not as strong, can have holes | Cheaper at first, but more defects | Hard shapes, parts that do not hold much weight |
| Forging | IT13–IT16 | 6.3–12.5 μm | Very strong (good grain flow) | Good balance of cost and strength | Parts that hold weight |
Design Complexity
Casting is better suited for manufacturing complex shapes. Molten metal fills every part of the mold, allowing engineers to create thin, delicate parts. Forging, on the other hand, is best suited for manufacturing simple shapes. Because the metal is solid, it’s difficult to create very delicate parts using forging.
Cost Factors
Casting has lower initial costs. Molds are cheaper and it’s suitable for rapid, mass production of parts. Forging is more expensive because it requires stronger molds and greater forging force. However, forged parts have a longer lifespan and require less repair. When companies choose between casting and forging, they consider the number of parts needed, the function of the parts, and the total long-term cost. Both casting and forging are essential to modern manufacturing.
Die Casting and Cold Forging Applications
Typical Applications of Die Casting
Die casting is crucial in many fields. It helps manufacture parts with complex shapes and smooth surfaces. Automotive companies use die casting to manufacture engine parts such as cylinder heads and engine mounts. They also use it to manufacture covers, forks, and radiators. Builders use die casting to manufacture faucet parts, toys, pumps, valves, power tools, and bushings.
Telecommunications companies use die casting to manufacture computer parts and lighting products. Die casting is also used in connectors, transistors, and circuits in electronic products. Sporting goods manufacturers use die casting to manufacture bicycle frames and body parts. The electrical industry uses die casting to manufacture fans, washing machines, televisions, and printed circuit boards.
MORELUX is a trusted precision die casting company. They provide high-quality metal parts for the automotive, electronics, telecommunications, and medical industries. Their technology ensures that every part meets stringent performance and reliability standards.
Typical Applications of Cold Forging
Cold forging is suitable for applications requiring parts with high strength and precision. Medical companies use cold forging to manufacture surgical instruments and equipment. These parts need to be robust, durable, and precisely shaped. Hardware manufacturers use cold forging to produce fasteners, bolts, and nuts. These parts must be able to withstand heavy loads and be durable.
Parts manufactured using the cold forging process have excellent mechanical properties. It is ideal for products that need to function well under pressure and have a long service life. Medical device manufacturers rely on cold forging because it can produce parts with high strength and precision.
Pros and Cons: Forged vs Cast Parts
Advantages of Cold Forging
Cold forging offers numerous advantages to factories. This process produces extremely strong parts. The grain orientation in the metal aligns with the direction of stress, helping to prevent bending or breakage. Cold forging also extends the lifespan of parts. The surface of the part becomes harder, making it less prone to wear. Parts achieve high precision, requiring minimal subsequent machining. Cold forging is fast, allowing for rapid production of large quantities of parts.
| Benefit | Explanation |
|---|---|
| High Strength | Grain structure improves, making parts stronger and less likely to break. |
| Better Fatigue Resistance | Parts endure repeated stress cycles, increasing their lifespan. |
| More Wear Resistance | Hardened surfaces resist abrasion, lasting longer in tough conditions. |
| Tight Tolerances | Precise shapes reduce the need for extra machining. |
| Lower Machining Costs | Less tooling and labor needed after forging. |
| High-Speed Production | Automated systems produce thousands of parts per hour. |
Cold forging uses less metal and energy than other processes. It produces less scrap and requires fewer additional steps. Metal utilization is as high as 95%, almost all of it is utilized. Moreover, its energy consumption is far lower than hot forging.
Disadvantages of Cold Forging
Cold forging is best suited for simple-shaped parts such as bolts and bars. Hard parts are difficult to manufacture this way. Some steels may crack or break if excessive force is applied. Due to the high hardness of the metal, the machine must apply significant pressure. This wears down the mold and consumes more energy.
Cold forging is not suitable for all types of metals or shapes. Factories must select metals that can be bent without breaking.
Advantages of Die Casting
Die casting is ideal for rapid, high-volume production of parts. Factories can manufacture parts with fine details and precise shapes. Thin-walled and specially shaped parts can be formed in one step. Internal spaces, such as holes and channels, can also be created using the die casting process. Because the details are already completed during the casting process, fewer additional steps are required.
- Die casting makes tricky shapes with small details.
- Thin parts are simple to make.
- Inside holes and channels are possible.
- Fast production helps factories make many parts.
| Feature | Die Casting | Forging |
|---|---|---|
| Shape Complexity | High, intricate designs possible | Limited, simple shapes only |
| Wall Thickness | Thin walls achievable | Generally thicker walls |
| Internal Features | Channels and cavities can be included | Difficult to create internal chambers |
| Machining | Reduced due to fine details | Often requires extra machining |
Disadvantages of Die Casting
Die casting costs a lot to start because the molds are pricey. Air bubbles can get trapped and make holes inside parts. This makes parts weaker and less safe. It is harder to control how strong cast parts are, so they may not be as tough as forged ones. Cooling can be uneven, which makes some spots harder than others.
- Air pockets can make parts weak.
- Cast parts are not as strong as forged ones.
- Molds and setup cost a lot.
- Hardness can change in different spots.
Casting and forging both have good and bad sides. Factories must think about shape, strength, and how many parts they need before picking a method.
Choosing the Right Process
Selection Criteria
The choice between cold forging and die casting processes is crucial. Engineers will consider the shape and material of the part, as well as the required quantity. Cost and part strength are also important considerations. The table below lists their considerations:
| Criteria | Description |
|---|---|
| Part Geometry | Check if the part is simple or tricky to shape. |
| Material Selection | Think about which metals work best for each process. |
| Production Volume | Decide if they need a few or many parts. |
| Cost Considerations | Look at how much each way costs for the number of parts. |
| Mechanical Properties | See how strong and tough the part needs to be. |
Example Scenarios
Different things need different ways to make them. Here are some examples of how companies pick between cold forging and die casting:
- Casting is good when only a few parts are needed because tools cost less.
- Die casting is best for making many parts fast and with less waste.
- Casting is easier for parts with thin walls or hard shapes.
- Forging is better for strong parts like bolts or connectors.
The table below shows real-life uses:
| Industry | Application | Outcome/Benefit |
|---|---|---|
| Automotive | Precision fasteners and connectors | Parts are stronger and last longer. |
| Electronics | Device casings and heat sinks | Parts look nice and help keep things cool. |
| Consumer Goods | Cookware and sports equipment | Products are light and tough. |
Cold forging pushes solid metal with force to make strong parts. Die casting uses melted metal and molds to make tricky shapes. Each way is good for different jobs.
FAQ
What are the main differences between cold forging and die casting?
Cold forging uses solid metal and high pressure. Die casting uses molten metal formed in a mold. Cold forging produces stronger parts. Die casting produces parts with more detailed profiles.
Which process is better suited for manufacturing complex shapes?
Die casting is best suited for manufacturing parts with complex shapes. The molten metal fills the mold, allowing for thin walls and intricate features.
Why do engineers choose cold forging for certain parts?
Engineers choose cold forging for parts requiring high strength. Forged parts can withstand stress better and have a longer lifespan.
What metals does your company use in die casting?
Our company uses aluminum alloys, zinc alloys, and magnesium alloys in die casting. These metals are lightweight, corrosion-resistant, and suitable for automotive and electronics products.
How can MORELUX meet your die casting needs?
MORELUX provides precise die casting solutions. They utilize new technologies to manufacture high-quality parts for automotive, electronics, and medical devices.
