A structural casting is a metal part made by pouring molten metal into a mold, where it cools and hardens into a shape that carries loads or supports a structure. It is a subset of the broader die casting family, but it is defined by what it does under load, not by appearance. Manufacturers reach for castings when machining or forging cannot handle a part’s complexity, weight, or cost. A single casting can replace several welded or bolted pieces. Engineers like this process because it forms complex shapes that handle stress well — and on a modern pressure die casting line those parts leave the mold ready for tight-tolerance machining, plating, or assembly.
This article explains what makes a casting structural, the materials and methods used, and the industries that rely on it. Where a general-interest piece on structural casting just lists process options, you will see the numbers we use day to day — die life in cycles, tooling tolerance in millimetres, batch size in parts — so a buyer can tell what is a real shop-floor claim and what is recycled textbook text.
Key Takeaways
- Structural castings hold weight and support structures, unlike decorative castings.
- Manufacturers pick aluminum, steel, or iron based on strength, weight, and cost.
- Sand, investment, and die casting each meet different needs for making parts.
- Industries such as automotive, aerospace, and medical depend on structural castings every day.
- Structural castings give you design freedom and save money by joining multiple parts into one.
Definition of Structural Castings
A structural casting is a metal part that carries a load or supports a structure. Engineers define it by function, not by appearance. The part must hold weight, resist force, or transfer stress without failing. That is what separates it from a decorative casting, where the only requirement is to look good.
What Makes Castings Structural
Geometry alone controls stress in a structure. A casting can form nearly any geometry, so stress control becomes very local and specific. A manufacturer can place material exactly where a load travels and remove it where the part needs no strength.
The table below shows how common geometric features change stress behavior.
| Geometric Feature | Effect on Stress Distribution |
| Thick vs. thin walls | Thermal stresses are inversely proportional to cross-sectional areas; thin sections experience tensile stresses while thick sections experience compressive stresses. |
| Thin protruding parts | Do not carry stresses themselves, but their connection to the body creates a structural notch due to abrupt cross-section change. |
| Holes in bent body (away from neutral axis) | Act as an additional negative factor, promoting stress concentration. |
| Holes in bent body (on neutral axis) | Do not pose a threat to stress distribution. |
| Compact shapes (blocks, spheres) | Cool slowly, partially self-annealing, affecting residual stress state. |
| Plates, beams, tubes | Cool faster at edges than center, creating temperature gradients that drive thermal stress formation. |
A structural casting also retains its solidification structure. That structure records how the metal cooled and how the mold behaved. In our quality lab we read this record with X-ray and Optical Emission Spectrometer checks before a batch is approved.
| Information Obtained | Interpretation from Solidification Structure |
| Cooling rate | Faster cooling leads to finer structures. |
| Temperature gradient | Steep gradients promote columnar growth. |
| Mold material | Metal molds yield different structures than sand molds. |
| Pouring temperature | Higher temperatures can influence grain size. |
| Alloy composition | Certain elements encourage equiaxed structures. |
Dendrite arm spacing is a key parameter. It correlates directly with cooling rate and affects mechanical properties. A finer spacing indicates faster cooling and generally improves mechanical properties.
Cast materials retain the solidification structure from their formation, providing valuable information about the casting process, cooling conditions, and material quality.
How Castings Differ from Other Parts
Structural castings carry loads or support structures. Decorative or non-load-bearing cast parts do not. The difference shows up in technical requirements, material selection, and quality expectations.
| Criterion | Non-Load-Bearing Decorative Castings | Structural Castings |
| Technical requirements | Basic melting, pouring, mold setup, and cooling knowledge is usually enough. | Requires advanced expertise in metallurgy, patternmaking, mold behavior, shrinkage, gating, risers, cooling rates, safety controls, and finishing. |
| Material selection | Chosen mainly for availability, cost, or ease of use. | Chosen for wear resistance, impact resistance, hardness, strength, service environment, and expected service life. |
| Quality expectations | Acceptable if appearance is good and the part serves a light-duty purpose. | Must perform reliably, fit accurately, and endure harsh conditions without early failure. |
| Risk of hidden issues | Defects are less critical. | Internal defects, inconsistent hardness, poor alloy choice, or inaccurate machining can cause downtime, equipment damage, or part failure. |
| Finishing needs | Often limited to simple cleanup, sanding, or polishing. | May require heat treatment, grinding, machining, inspection, fabrication, or assembly before use. |
A factory that produces structural castings must control solidification. On our line we hold ±0.02 mm on tooling, run simulated mold-flow before cutting steel, and run X-ray on every batch of safety-relevant parts. A uniform and controlled solidification process minimizes defects such as porosity, segregation, and hot tearing. Rapid cooling can form fine grains and enhance mechanical properties. Slow cooling may result in coarse grains and increased susceptibility to defects.
Common Materials for Structural Castings
The material you pick controls how a structural part works under load. Engineers choose alloys based on strength, weight, corrosion resistance, and cost. The two main families are lightweight non-ferrous alloys and ferrous metals.
Aluminum and Lightweight Alloys
Aluminum castings give a high strength-to-weight ratio after heat treatment. They resist rust well and form complex shapes with thin walls. Car, lighting, and electronics makers use them to lower part weight and keep thermal conductivity up. Common uses include lightweight structural components in automotive and aerospace.
On our floor we run aluminum die casting on cold-chamber machines from 280 to 2,000 tons of clamping force. Alloy ADC12 and A380 are the everyday workhorses for housings and brackets; we push injection metal to around 700 °C and hold wall thickness down to 0.8 mm where the geometry allows. That is how we keep light-alloy structural parts thin enough for heat dissipation and still strong enough for vibration loads.
Magnesium alloys cut weight even more. Aerospace projects use magnesium-zinc-manganese-tin-yttrium alloys for fuselage panels and gearbox housings. These alloys drop about 35% weight compared to aluminum and also improve ductility. Magnesium-yttrium-samarium alloys keep yield strength above 120 MPa at 250 °C, making them a fit for missile casings and engine parts — outside our line, but a useful ceiling for material development.
Steel Castings and Iron
Steel castings for structural use follow ASTM and EN grades. Common ASTM grades include A148 for high-strength structural use, A27 for general application, and A216 for fusion welding at high temperatures.
| ASTM Grade | Description |
| A148 / A148M | High strength, for structural purposes. |
| A27 / A27M | Carbon, for general application. |
| A216 / A216M | Carbon, suitable for fusion welding. |
| A958 / A958M | Carbon and alloy, with tensile requirements. |
Steel castings are commonly used in mining equipment, heavy construction machinery, and transportation systems where exceptional strength is required. Cast iron contains 2–4% carbon, forming graphite flakes in a heterogeneous microstructure, while steel has a lower carbon content.
In our experience a buyer who walks into a structural casting brief with one alloy in mind is often steered toward a better answer during the tooling review. The shift is usually from steel to aluminum for weight, or from aluminum to zinc for surface finish and net-shape complexity — not because one alloy is universally better, but because the service environment is rarely what the print assumed.
Manufacturing Processes for Structural Castings
Sand and Investment Casting

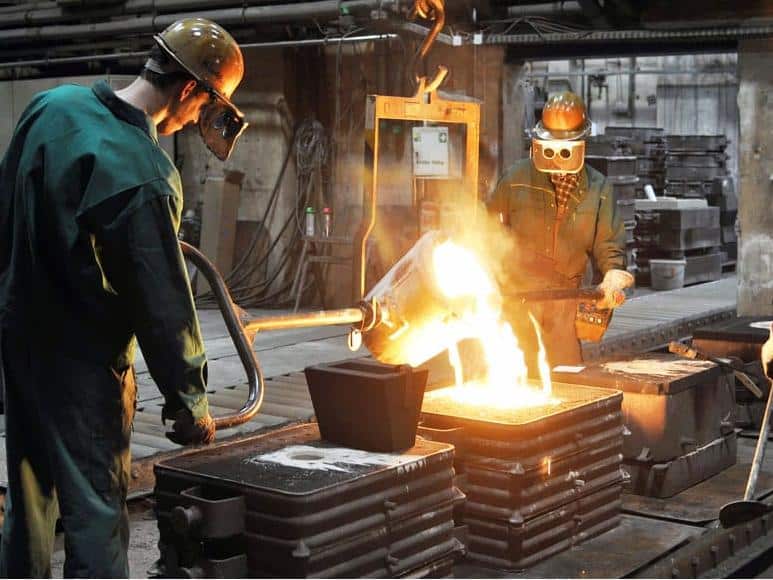

Sand casting makes molds from sand and a binder. This process works well for big, simple parts. Pattern costs are generally lower than those for investment casting. Foundries often use sand casting for large steel structural parts. The casting process begins with pattern making and ends with taking the part out.
Investment casting uses a wax pattern covered in ceramic. Heat melts the wax and leaves a precise mold. This method gives a better surface finish. Sand casting typically has a rougher surface finish than investment casting.
Investment casting is used for a variety of structural components, including aerospace and industrial parts. Material choices include high-strength alloys, and steel is a common material due to its strength and weldability. Steel grades like ASTM A148 serve structural purposes.
Die Casting and High-Pressure Methods
High-pressure die casting pushes molten metal into steel molds at high speed. This method makes complex shapes with tight tolerances. Cycle times are fast.
| Method | Cycle Time |
| High-Pressure Die Casting | Fast. |
| Low-Pressure Die Casting | Moderate. |
| Gravity Die Casting | Slower. |
Good points include complex shapes with tight tolerances, thin walls, high production rates, low cost per part at scale, stable dimensions, and a high strength-to-weight ratio. The casting process gains from advanced quality control. Structural castings undergo rigorous testing, including X-ray inspection, dimensional checks, and material chemistry verification.
A good casting design accounts for cooling rates, shrinkage, and gating. Steel tooling is durable and long-lasting — well-built dies for structural castings commonly reach 500,000 cycles on our floor before reaching their inspection-limited life. These castings serve industries from automotive to aerospace.
Applications and Benefits of Structural Castings
Structural castings are used in mining equipment, heavy construction machinery, transportation systems, lighting hardware, and electronics enclosures. In Southeast Asia the largest single block of structural casting demand by volume is automotive die casting — engine blocks, transmission housings, inverter housings, and battery-tray brackets — where every kilogram saved is fuel economy or range retained. Lighting die casting is the second-largest block we see, then medical and telecom enclosures.
Where Structural Castings Are Used
Structural castings are used in mining equipment, heavy construction machinery, transportation systems, and aerospace components. Examples include engine components, transmission cases, fuselage panels, and gearbox housings. On our line in Malaysia we ship structural castings in lot sizes from 10,000 to 50,000 parts per batch, with CNC machining on roughly 80% of them to hold ±0.01 mm tolerance on critical features.
Why Industries Choose Structural Castings
Engineers pick castings for strength and design freedom. The process puts material right where loads travel. This fine-tuning boosts mechanical properties while cutting weight. Castings build in internal channels and support ribs directly. Single-piece castings allow smooth changes and natural shapes that welded assemblies cannot match.
| Design Aspect | Structural Castings | Welded Assemblies |
| Functional integration | Channels and ribs integrated directly. | Limited by plate geometry. |
| Part consolidation | Reduces weld seams and fasteners. | Requires multiple subassemblies. |
| Engineering freedom | Greater optimization of stiffness and weight. | Limited by fabrication constraints. |
Saving money drives their use. Complex shapes form in one step. Machining or forging becomes impractical for intricate shapes. Steel castings give high strength and weldability. Manufacturers lower costs per part at higher volumes.
A structural casting is a metal part that carries a load or supports a structure. Geometry, material, and solidification control make it structural. Manufacturers choose aluminum, steel, or iron based on strength, weight, and cost. Sand, investment, and high-pressure die casting each serve different needs. Automotive, aerospace, lighting, medical, telecom, and electronics industries rely on these parts every day.
The future looks strong for structural castings. Battery housings, inverter brackets, and 5G base-station enclosures are pulling volumes up faster than the traditional ICE automotive line is pulling them down — and that mix-shift is what keeps a structural casting factory busy in 2026.
FAQ
What makes a casting structural instead of decorative?
A structural casting holds weight or supports a structure. Decorative parts do not. Structural castings need deep metal science, careful checks, and full testing before use.
Which materials do manufacturers choose for structural castings?
Aluminum is the default for lightweight structural parts thanks to its strength-to-weight ratio and corrosion resistance. Steel grades like ASTM A148 give high strength and are easy to weld. Iron castings contain 2–4% carbon and are used in selected heavy-industry applications. For complex net shapes, zinc and copper are also viable structural-casting alloys.
How does high-pressure die casting help make structural parts?
High-pressure die casting forces melted metal into steel molds at high speed. Cycle times are fast. This method makes complex shapes with thin walls and very exact measurements — typically 0.8 mm wall thickness and ±0.01 mm post-machining tolerance on critical features.
What industries rely on structural castings the most?
Automotive, lighting, medical, telecom, and electronics are the largest end markets for structural castings. Aerospace, mining, and heavy construction are smaller but require higher strength grades and tighter inspection.
What quality tests do structural castings require?
Structural castings undergo X-ray inspection, dimensional checks, material chemistry verification via Optical Emission Spectrometer, leak tests where sealing matters, and functional tests on assembled units. Buyers should expect the test plan to be drawn up at the tooling review, not after the first production batch has been shipped.
