Die-cast aluminum is a high-strength, lightweight metal. It is made by injecting molten aluminum into a mold under high pressure. Many industries use die-cast aluminum because of its durability and high precision. It’s used daily in automobiles, electronics, furniture, and kitchenware.
Key Takeaways
- Die-cast aluminum is strong, lightweight, and resistant to rust. This makes it ideal for numerous industries, including automotive and electronics.
- The die-casting process uses high pressure to create smooth, high-precision parts. This helps produce large quantities of parts with minimal waste.
- Aluminum alloys such as A380 and A360 are common. They are strong and have a long service life. They are used in automobiles, home appliances, and medical devices.
- Die casting offers several advantages over other manufacturing processes. It can produce a large number of parts at a lower cost and can also produce more suitable parts.
- Recycling die-cast aluminum is good for the planet. It saves energy and reduces waste. Therefore, it is a wise choice for businesses.
Aluminum Die Casting Process
Overview of Die-Casting Aluminum
Aluminum die casting uses high-pressure machines. These machines press molten aluminum into steel molds, creating strong, lightweight, and extremely precise metal parts. The unique feature of aluminum die casting is its ability to quickly produce complex parts with minimal material waste. These molds, called die-casting molds, shape the aluminum as it cools and hardens. This allows companies to produce thousands of identical parts.
Advantages of Die-Casting Aluminum
Die-cast aluminum offers numerous advantages. Parts are strong and durable yet lightweight, rust-resistant, and have a long lifespan, functioning even in harsh environments. Their smooth surfaces and tight fits require minimal machining in most cases, saving time and costs. MORELUX uses sensors to inspect each part, helping to prevent errors and ensuring proper component operation.
| Characteristic | Description |
|---|---|
| Lightweight | Aluminum die casting makes lightweight parts for many uses. |
| Corrosion Resistance | Aluminum parts resist rust and damage from moisture. |
| Thermal Conductivity | Aluminum transfers heat well, making it good for electronics and engines. |
| Cost-effectiveness | Aluminum die casting lowers costs by reducing waste and speeding up production. |
Comparison with Other Casting Methods
Aluminum die casting offers higher strength and precision than sand casting or investment casting. Die-cast parts have a better grain structure, fewer part errors, smoother surfaces, and more accurate dimensions. This is highly advantageous for parts requiring precise fits. The table below lists the differences between die casting and other casting methods:
| Method | Mechanical Strength | Dimensional Accuracy | Surface Finish |
|---|---|---|---|
| Die Casting | Superior | ±0.1mm typical | 1-2 μm Ra |
| Sand Casting | Inferior | ±0.5mm or more | 5-25 μm Ra |
| Investment Casting | Moderate | ±0.5mm or more | 5-25 μm Ra |
Die-cast aluminum material
Common Alloys Used
Die-cast aluminum is used in many industries because of its high strength, light weight, and long service life. Manufacturers choose different aluminum alloys to manufacture parts depending on the application. The most commonly used alloys include A380 and A360. These alloys help companies produce high-quality aluminum parts for automotive, electronics, and home appliances.
| Aluminum Alloy | Key Characteristics and Uses |
|---|---|
| A360 | This alloy does not rust easily. It stays strong when hot. It bends without breaking. It keeps air and water out well. It flows easily but is harder to shape. |
| A380 | This is the most used alloy. It flows well and is light. It does not rust or crack from heat. It keeps its shape and size. It is strong when hot and carries electricity well. It is used in tools, frames, electronics, car engines, gear cases, furniture, and appliances. It is easy to cut and shape. |
| 383 | This alloy is like A380 but better for tricky shapes. It is strong and easier to cast. |
Properties and Applications of Each Alloy
The special features of die-cast aluminum are its lightweight, strength, rust resistance, and resistance to deformation. These properties make aluminum alloys widely applicable.
- The light weight of aluminum alloys helps reduce the weight of cars and aircraft. Lighter parts can save fuel and make cars easier to drive.
- Die-cast aluminum has high strength, ranging from 200 to 350 MPa. A380 alloy, with a strength of approximately 310 MPa, is one of the strongest alloys.
- Aluminum does not rust because a hard protective layer forms on its surface. This protective layer effectively repels water and chemicals.
- Aluminum parts can maintain their shape and dimensions for many years.
| Property | Value |
|---|---|
| Density | 2.71 g/cm³ |
| Brinell Hardness (HB) | 80 |
| Thermal Expansion Coeff. | 21.8 µm/m-K |
| Melting Point | 566°C ± 50 |
| Shear Strength | 190 MPa |
| Electrical Conductivity | 23% |
| Elongation (50 mm) | 35% |
| Thermal Conductivity | ~96 W/m-K |
| Impact Strength | 4 J |
| Yield Strength (0.2%) | 160 MPa |
Different alloys have different applications. A380 alloy has high strength, high hardness, and is easy to form, commonly used in automotive parts, housings, and brackets. ADC12 alloy has good fluidity and effectively isolates air and water, commonly used in electronic product housings and heat sinks. A356 alloy has extremely high strength, good bending performance, and is rust-resistant, commonly used in aircraft parts and critical metal components. A413 alloy effectively isolates air and water and has low shrinkage, suitable for pumps and fluid components. A360 alloy is rust-resistant and aesthetically pleasing, commonly used in manufacturing intricate metal parts and electronic products.
MORELUX uses advanced equipment and rigorous quality control to produce high-quality aluminum parts. Its special surface treatment processes, such as electroplating and coating, enhance the appearance and performance of each part.
Key Aspects of Die Cast Aluminum
Process Flow
Aluminum die casting uses high pressure to force molten aluminum into a steel mold, creating precisely shaped, smooth-surfaced metal parts. The quality of each part depends on multiple steps. Temperature control ensures the fluidity of the aluminum and helps to fully fill the mold. Maintaining a constant metal temperature prevents changes in size and shape. Controlling mold temperature prevents uneven cooling and shrinkage. Speed and pressure must be matched to the part design. Appropriate cycle time helps balance speed and quality. Quality control enables early detection and correction of errors. Selecting and preparing suitable alloys is crucial for manufacturing high-strength parts.
Materials
Aluminum die casting uses various materials to create strong yet lightweight parts.
| Raw Material | Properties and Effects on Final Product |
|---|---|
| Recycled Aluminum | Good for the planet; quality depends on what is recycled. |
| Iron | Stops sticking; can make the part less bendy. |
| Die Lubricants | Make the surface smoother and easier to handle. |
| Additives (Salts) | Clean the melted metal. |
| Gases (Nitrogen, Argon, Chlorine) | Take out hydrogen and stop holes. |
| Cooling Rate | Changes how strong and stable the part is. |
| Thermal Treatments | Make the part stronger and stretch more. |
The entire process begins with sorting and melting aluminum. Workers add salt and gas to purify the molten metal. They apply lubricant to a mold, pour in molten aluminum, and then rapidly cool the part. Sometimes, they heat the part to increase its strength.
Properties
Die-cast aluminum parts possess many excellent properties. They are lightweight yet strong, making them ideal for automotive, electronics, and aircraft applications. Because a thin film forms on the surface of die-cast aluminum parts, they do not rust. These parts also have good thermal and electrical conductivity, crucial for applications in engines and electronic tools. Aluminum die casting can produce parts with very high precision, up to ±0.1 mm. However, compared to some other metals, they are more prone to deformation when heated.
| Alloying Element | Influence on Properties |
|---|---|
| Silicon | Makes the metal flow and fill molds better. |
| Copper | Makes the part stronger. |
| Magnesium | Makes the inside structure better. |
A common aluminum alloy, A380, is primarily composed of aluminum, with added silicon and copper to enhance its strength and hardness. It has a tensile strength of approximately 310 MPa and also exhibits high hardness. These properties make aluminum die casting a preferred choice for manufacturing high-strength, lightweight, and high-precision parts in many applications.
Tip: Aluminum die castings are recyclable, making them environmentally friendly.
Applications of Die-Cast Aluminum

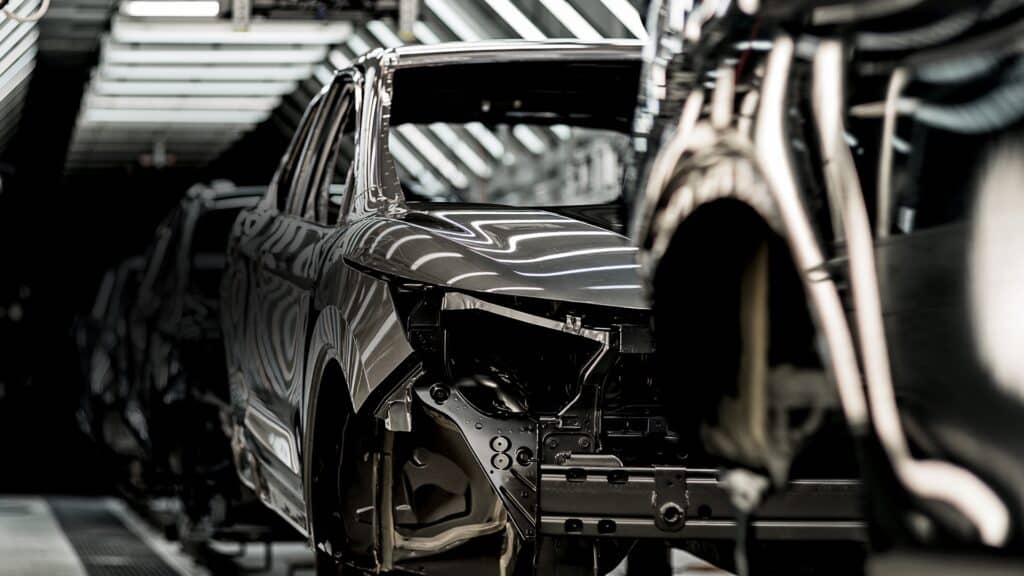

Automotive and Electronics
Die-cast aluminum is widely used in the automotive and electronics industries. Automakers use aluminum to reduce vehicle weight and increase strength. Components manufactured using this process include:
- Engine blocks
- Transmission housings
- Oil pans
- Brackets
- Suspension parts
hese components help reduce fuel consumption and extend lifespan. In electronics, aluminum helps dissipate heat from critical components, keeping components such as processors and LEDs operating at low temperatures, ensuring efficient device operation and preventing overheating. Aluminum housings protect electronics from water and chemicals and have a long lifespan because they don’t rust. Die-cast aluminum heat sinks feature thin fins that remove heat from sensitive components, protecting electronics and extending their lifespan.
MORELUX specializes in manufacturing aluminum components for automotive and electronics. They use advanced die-casting machines to create strong, lightweight, and precisely shaped components, and employ special surface treatments to protect and enhance the performance of each component.
Medical and Telecommunications
Die-cast aluminum is also used in medical and telecommunications equipment. Many medical devices require robust, lightweight, and clean components. The table below lists some common applications:
| Medical Device Type | Application Description |
|---|---|
| Imaging Systems | Aluminum housings for CT, MRI, and X-ray machines |
| Surgical Robots | Lightweight frames for surgical robots and patient positioning systems |
| Portable Medical Devices | Strong, light cases for easy transport |
| Hygiene Advantage | Smooth surfaces for easy cleaning and sterilization |
Aluminum components in medical devices must adhere to strict safety regulations. They are easy to clean and can be sterilized. In the telecommunications field, die-cast aluminum is used to manufacture housings for antennas and signal equipment. These components protect electronic components from weather and damage. Aluminum housings also help dissipate heat and maintain clear signals.
Casting Methods Compared
Die Casting vs Sand Casting
Both die casting and sand casting involve shaping aluminum into parts, but they are achieved in different ways. Die casting uses high pressure to force molten aluminum into a steel mold. Sand casting uses a sand mold that fills the surrounding area. Both methods have their advantages.
Die casting has a higher initial cost, while sand casting has a lower initial cost, but each part takes longer to manufacture and requires more post-casting machining. The following table lists the main differences:
| Property | Die Casting | Sand Casting |
|---|---|---|
| Initial tooling cost | $10,000-$100,000+ | $1,000-$15,000 |
| Unit cost (high volume) | Very low | Moderate to high |
| Production rate | High (seconds/part) | Low to moderate |
| Lot size suitability | 1,000+ pieces | 1-1,000 pieces |
| Post-processing needed | Minimal | Moderate to extensive |
Die casting can produce parts with smooth surfaces and precise shapes. Sand casting is suitable for small-batch production or manufacturing large parts, but sand-cast parts have rougher surfaces and larger dimensional deviations.
Die casting is best suited for rapid, high-precision manufacturing of large quantities of parts. Sand casting is suitable for small quantities of parts or parts with larger shapes.
Die Casting vs Other Methods
Die casting also differs from other casting methods. Investment casting can produce very complex shapes with high precision, but the manufacturing time and cost per part are higher. Gravity casting uses gravity to fill the mold with material, suitable for simple shapes, but its speed and precision are not as good as die casting. The table below compares some key characteristics:
| Comparison Items | Investment Casting | Die Casting |
|---|---|---|
| Surface Quality | Smooth, minimal machining | Smooth, often ready to use |
| Mechanical Properties | High density, stable | Good density, strong |
| Dimensional Accuracy | Extremely high | High, but less precise |
Compared to many other processes, die casting consumes less energy and produces less waste. This process not only saves energy but also produces more durable parts, meaning fewer replacements are needed. Die-cast aluminum parts are easily recyclable, which is more environmentally friendly.
Die-cast aluminum is strong, lightweight, and resistant to rust. Many companies use it to manufacture parts that must be durable and fit precisely. Engineers consider mold costs and alloy selection, and test part performance. These choices affect the cost and quality of the parts.
FAQ
What are the uses of die-cast aluminum?
Die-cast aluminum is widely used in the automotive, electronics, medical device, and telecommunications equipment industries. Companies use it to manufacture engine parts and housings, as well as brackets and radiators. This material is strong, lightweight, and has a long service life.
Why do manufacturers prefer die-cast aluminum?
Manufacturers prefer die-cast aluminum because of its high strength, light weight, and rust resistance. The die casting process can produce parts with precise shapes and smooth surfaces, and its fast production speed can save significant costs on parts.
What is the difference between die casting and sand casting?
Die casting uses high-pressure steel molds, while sand casting uses sand molds. Die casting can produce smoother, more precise parts. Sand casting is better suited for small-batch production or manufacturing large parts.
Can die-cast aluminum be recycled?
Yes! Die-cast aluminum can be recycled multiple times. Recycling saves energy and is beneficial to the environment.
What alloys are common in die cast aluminum?
These alloys are used for car parts, electronics, and appliances.
| Alloy | Main Benefit |
|---|---|
| A380 | Strength, easy flow |
| A360 | Corrosion resistance |
| 383 | Complex shapes |
