Steel cannot be used for high-pressure die casting. The main reason is its extremely high melting point. The high temperature would damage the mold material. Most molds cannot withstand the high temperatures of molten steel.
Steel requires high temperatures to melt, and these temperatures would damage the ordinary molds used in high-pressure die casting. Therefore, high-pressure die casting is not suitable for steel.Steel needs heat that can hurt normal dies used in high pressure die casting. This makes the process not good for steel.
Key Takeaways
- Steel cannot be used for high-pressure die casting because of its extremely high melting point. This temperature is too high for ordinary mold materials.
- High-pressure die casting is best suited for metals such as aluminum and zinc. These metals have lower melting points and cause less damage to the mold material.
- Other steel casting methods include sand casting and investment casting. These methods are more suitable for manufacturing high-strength steel parts.
- Understanding the limitations of high-pressure die casting helps manufacturers choose the best steel manufacturing method.
- Choosing the right casting method can save costs and improve the quality of steel parts. This also helps parts meet design and strength requirements.
Steel and high pressure die casting
Melting point challenges
Steel has an extremely high melting point, making it difficult to use for high-pressure die casting. Other metals used in this process have much lower melting points. The table below compares the melting points of steel with those of aluminum and zinc.
| Metal | Melting Point (°C) |
|---|---|
| Steel | 1371 – 1593 |
| Aluminum | 660 |
| Zinc | 420 |
Steel has a melting point exceeding 1370°C. Aluminum and zinc have much lower melting points. High-pressure die casting is best suited for metals with low melting points, such as aluminum die-casting and zinc die-casting. Steel’s high melting point makes it a disadvantageous material for this process. The machines cannot withstand the high temperatures required for steel. This problem not only increases the difficulty of mold design but also causes greater damage to the equipment.
Die material limitations

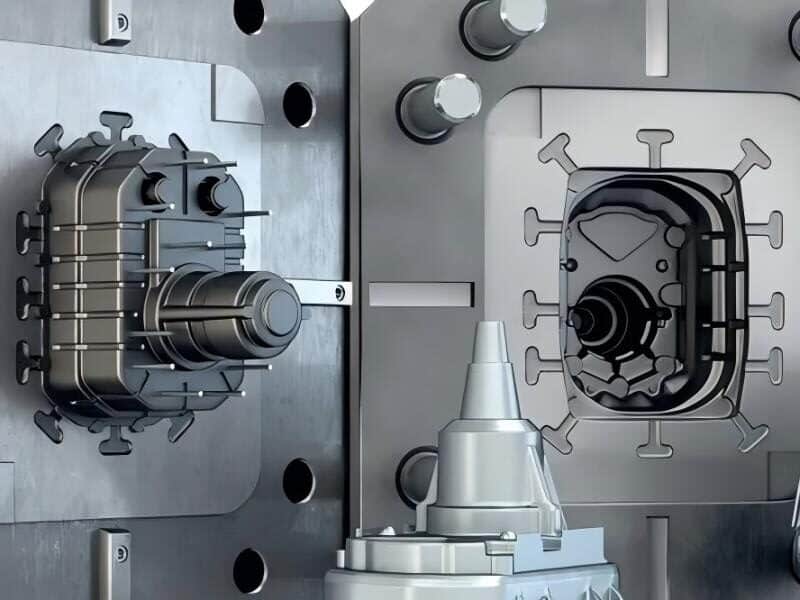

High-pressure die casting molds must be able to withstand high temperatures. Most molds are made of special tool steels such as H11 and H13. These materials have a maximum operating temperature of only 500°C.
The melting point of steel is much higher than the temperature these molds can withstand. If high-temperature steel comes into contact with the mold, the mold will wear and damage rapidly. The mold may crack, rust, or break quickly. Even aluminum, with a melting point of 660°C, can cause the mold to rust and become sticky.
High-pressure die-casting molds often experience severe localized rusting when in contact with high-temperature molten aluminum. System heating and cooling accelerate this damage.
Industry specifications define which metals are suitable for high-pressure die casting. The NADCA standard, the General Motors Mold Material Specification, and the Ford Mold Material Specification all focus on metals with lower melting points. These specifications do not recommend the use of steel for high-pressure die casting.
| Standard Name | Description |
|---|---|
| NADCA Standards | Gives rules for the die casting industry, including which metals are good for high pressure die casting. |
| 2024 Product Specification Standards | Lists rules, design, and tips for making high pressure die castings, including alloy details. |
| GM Die Material Specifications | Checks the quality of H-13 and other hot work tool materials for GM projects. |
| Ford Die Material Specifications | Lists what properties and heat treatments dies need for making parts. |
Most commonly used metals in high-pressure die casting include:
- Aluminum alloys: A380, A413, A360, ADC12
- Zinc alloys: Zamak series
- Copper
- Magnesium
- Lead
- Tin
These metals are called die-casting alloys. They have low melting points and are suitable for general molds. Steel does not belong to this category because its melting point is much higher, which the molds cannot withstand.
Challenges of high pressure die cast steel
Thermal stress and die wear
The application of steel in high-pressure die casting presents significant challenges. Its high melting point leads to extremely high mold temperatures. This high temperature generates various thermal stresses:
- Uneven heating of the mold causes localized shrinkage.
- Uneven cooling of parts creates shrinkage stress.
- The steel reacts with the mold material, generating corresponding forces.
These stresses can damage the mold and shorten its lifespan. Steel causes far greater wear on molds than zinc or aluminum. Zinc has a lower melting point, resulting in less wear on the equipment. Zinc molds have a longer lifespan and require less maintenance. Aluminum molds wear out faster than zinc, but steel wears out more rapidly. Repeated high temperatures can lead to thermal fatigue, resulting in rough or marked mold surfaces.
Process constraints
High pressure die casting steel has many limits. The table below lists some main problems:
| Constraint Type | Description |
|---|---|
| Part Size | The machine size and power limit how big the part can be. |
| Cycle Time | Pouring and pressing the metal takes more time. |
| Die Venting | Good venting is needed to stop air from getting trapped. |
| Porosity and Inclusions | Fast injection can trap air, making holes and weak spots. |
| Complexity of Design | The die must open and close in one way, so making tricky shapes is hard. |
| Scalability | Machines can only make so many parts, so making more needs more machines and tools. |
| Heat Treatment Issues | Trapped air can stop heat treatment from working well. |
| Non-uniformity | Bigger or thicker parts may not be strong everywhere. |
Rapid cooling of steel in high-pressure die casting can increase its strength. It forms fine grains, thus enhancing strength. However, rapid cooling also introduces more problems. It can create voids, cracks, and weak points. Tiny voids within the steel reduce its strength. Weak points appear if the molten steel does not fuse together. Poor release agents or contaminants can lead to rough surfaces.
This method of steel casting is very expensive. Molds are prone to damage and require frequent replacement. The manufactured parts may not reach their expected lifespan. It’s difficult to guarantee that every part is robust and durable, especially with complex shapes. These issues make steel a disadvantageous material for high-pressure die casting compared to other alloys.
Alternatives to high pressure die casting for steel
Steel parts require other manufacturing methods. High-pressure die casting is not suitable for steel. There are other, better methods for manufacturing steel parts. Each method has its advantages and disadvantages.
Sand casting
Sand casting is a common method for manufacturing steel parts. Workers use sand to create a mold around a model. They then pour molten steel into the mold. This method is suitable for large parts and parts with complex shapes. Many companies use sand casting to manufacture engine blocks and pump housings. It is also used to manufacture gearboxes. The automotive, oil, and power plant industries all use sand casting to manufacture high-strength steel parts.
- Advantages:
- Lower initial mold cost
- Can cast various shapes
- Suitable for small-batch production
- Disadvantages:
- Potential internal voids or impurities
- Dimensional accuracy is lower than other casting processes
- Requires thicker walls and more subsequent machining
Sand casting is best for steel parts that do not need to be very exact or made in large numbers.
Investment casting
Investment casting, also known as lost-wax casting, is a method for manufacturing high-precision steel parts. First, workers create a wax model of the part and then cover it with ceramic. Next, the wax model is melted, and molten steel is poured into the ceramic mold. This method produces parts with smooth surfaces and precise dimensions. It is suitable for small-batch or high-volume production and is applicable to most types of steel.
| Step | Investment Casting |
|---|---|
| Wax Pattern Creation | A wax copy of the part is made |
| Ceramic Shell Building | The wax is covered with ceramic |
| Wax Removal | Wax is melted and taken out |
| Metal Pouring | Melted steel is poured in |
| Cooling & Shell Removal | Ceramic shell is broken off |
| Finishing | The part is cleaned and shaped |
- Advantages:
- Very exact sizes
- Smooth surface
- Good for tricky shapes
- Disadvantages:
- Higher cost than sand casting
- May require subsequent processing
Forging and other methods
Forging changes the shape of steel by pressing or hammering. There are various forging methods, such as open die forging and closed die forging. Cold forging and roll forging are also commonly used methods. Forged steel has higher strength and a longer service life than cast steel. Some steels cannot be forged and must be cast. Forging is suitable for parts requiring high strength.
Other methods for manufacturing steel parts include centrifugal casting, lost foam casting, vacuum casting, and plaster casting. These methods are suitable for parts with special shapes or special requirements.
| Method | Advantages | Disadvantages |
|---|---|---|
| Sand Casting | Good for big parts and tricky shapes | Can have holes or bits inside |
| Investment Casting | Very exact and good for small batches | Costs more than sand casting |
| Forging | Makes stronger parts | Not all steel types can be forged |
The best way depends on the part’s size, shape, how many you need, and what the part must do.
Steel is not suitable for high-pressure die casting. Its high melting point makes it difficult to use. Dies wear out quickly when casting steel. The table below explains why steel is not suitable for high-pressure die casting:
| Challenge | Explanation |
|---|---|
| High melting points of ferrous metals | Steel needs special tools that normal die casting cannot use. |
| Prone to defects | Porosity and shrinkage can make steel parts weak during casting and heat treatment. |
| Only suitable for non-ferrous metals | High pressure die casting works best with metals like aluminum and zinc. |
Manufacturers also use other methods to cast steel. Some common options include:
- Sand casting is used for large or complex-shaped parts.
- Investment casting is suitable for precise shapes and smooth surfaces.
- Centrifugal casting can produce parts with high strength and few defects.
These methods help reduce waste and save costs. Compared to die casting, they are also better suited to meet the required number and shape requirements of parts.
FAQ
Which metals can be used for high-pressure die casting?
Manufacturers typically use aluminum, zinc, magnesium, and copper to make these parts. These metals have low melting points and are suitable for ordinary molds.
Why can’t steel be used for high-pressure die casting?
Steel’s melting point is much higher than the temperature most molds can withstand, which would cause the molds to wear out quickly. Therefore, casting steel using this method is not practical.
What is the main difference between sand casting and die casting?
Sand casting uses sand molds to create larger parts. Die casting uses metal molds to create metals with lower melting points. Sand casting can create parts of more shapes.
Can high-pressure die casting improve the quality of steel parts?
No, high-pressure die casting is not suitable for steel parts. Other methods, such as forging or investment casting, can produce steel parts with higher strength and precision.
Are there other methods for manufacturing high-strength steel parts?
Yes. Forging, investment casting, and sand casting can all produce high-strength steel parts. Each method is suitable for different sizes, shapes, and strength requirements.
